Dispensing Booth / Sampling booth / Weighing booth/ Reverse Laminar Air Flow
Pratham HVAC Solutions manufacture and supply standard and customized (in terms of functionality and capacities) an exclusive line of Dispensing booths which is a kind of partial purifying equipment for filling, refilling, weighing, and sampling raw material and compounds. It is provided with the HEPA filter, which prevents airborne dust by the down drought technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.

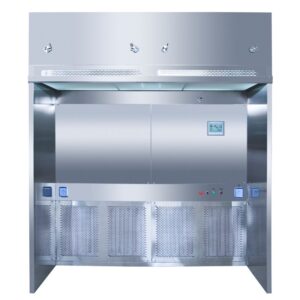

Dispensing Booth
The dispensing booth is also called a pharmaceutical sampling booth and pharmaceutical weighing booth. Our Sampling booth comes with two to three validation ports for Pre-filters and HEPA filters. DOP test of dispensing booth must be repeated every 6 months for better functioning of the Sampling booth. Pharmaceutical Dispensing booths are used in the Pharmaceutical Industry in the field of Human Body injectables.
Application
- Drug Formulation
- Chemical Industry
- Product Dispensing
- Large Scale Powder
- weighing and dispensing
- Raw Material Dispensing
- Pharmaceutical Industry
- Food Industry
- Cosmetic Industry
Dispensing Booth Working Principle
Downward Forced air of sampling booth extracts at a low level into the booth’s cleanliness filtration system where contaminated particles recirculated into the booth Air Flow. In standard Working conditions of the pharmaceutical dispensing booth air is pulled through the main chamber to steel exhaust grills used to fasten the HEPA & PRE-filters fitted in the rear side of the booths, it suppresses airborne dust particles away from the users breathing area.
Features
1. Customized design
2. A uniquely designed air duct effectively controls the noise.
3. Smooth transitions of the wall and ground can eliminate the blind angle.
4. The differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. An automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
7. Uniform flow design of the main working area
8. The sampling booth has primary filters, medium efficiency filters, and HEPA filters
• HEPA Filter (0.3 microns)
• Fine Filter (5 microns)
• Pre-Filter (10 microns)
• more than 99.97% at 0.3 micron
9. Motor Blower Assembly
10. U.V. Light
11. Fluorescent Lamp
12. Operating Switch
13. Static Pressure Manometer
14. SS 304/316/316L construction
15. Ultra-quiet noise level of not more than 65 dBA
16. Durable and easy-to-clean stainless-steel body
17. Glare-free fluorescent light
18. PVC Flexible Curtains on all three sides
Dispensing Booth Parts and Functioning
HEPA Filters
HEPA filters prevent airborne dust particles up to 0.3 microns with airflow from top to downside. HEPA Filters are fitted on the top side of the machine and are also known as mini pleat filters.
Prefilters
Washable Box-type synthetic non-woven media filters are fitted on the bottom side of the machine. Rated Airflow is 500 CFM with an efficiency of 90% down to 10 microns.
UV Lights
Two feet of UV light fitted on the top with the illumination light. Testing Report of UV light is also supplied with the IQ/PQ/DQ Documents.
Differential Pressure Gauge
Magnehelic Gauges are used to measure the pressure drop inside the working area 0 to 500 MM WC with a least count of 1 MM WC. Pratham HVAC Solutions offers AEROSENSE/Delta magnehlic gauge with spec.
Curtains
Low Maintenance & Long life PVC antistatic dustproof curtains are supplied with the machine.
LCD Display Unit
Microprocessor-based controller fitted in the front side of the machine with three to four power points. The controller helps the user in maintaining the light, UV light timer & Blower speed. Blower Capacity 1500 to 2500 RPM in two to three numbers supplied according to the size of the Dispensing booth.
|
TECHNICAL SPECIFICATIONS: -
|
|
|---|---|
|
Air Velocity
|
90 ± 20 Cfm (Average)
|
|
Filtration Elements
|
Main Filters: HEPA Filter
|
|
Prefilter
|
Washable non-woven polyester fibers.
|
|
Filter Efficiency
|
Main Filters: 99.97 at 0.3 micron
|
|
Pre-filter:
|
90%, at 10 microns
|
|
Fine Filter
|
10 microns
|
|
Noise Level
|
< 65 dBA
|
|
HEPA Filter Brand
|
Fine Airsys/Airtech
|
|
Light Intensity
|
800-1000 Lux
|
|
Power Supply
|
220V Single Phase, 50 Hz.
|
|
WORKING SIZES
(W X D X H) |
2′ X 2′ X 6′, 3′ X 2′ X 6′, 3′ X 3′ X 6′
4′ X 2′ X 6′, 4′ X 3′ X 6′, 4′ X 4′ X 6′ 6′ X 2′ X 6′, 6′ X 4′ X 6′, 6′ X 6′ X 6′ |
Every unit provides highly satisfactory performance and a competitive price guarantee. We are a known brand in the field of cleanroom equipment with the best prices in India. We offer 2 years of warranty with 10 years’ spare parts supply like HEPA FILTER, PRE FILTER, MOTOR.
